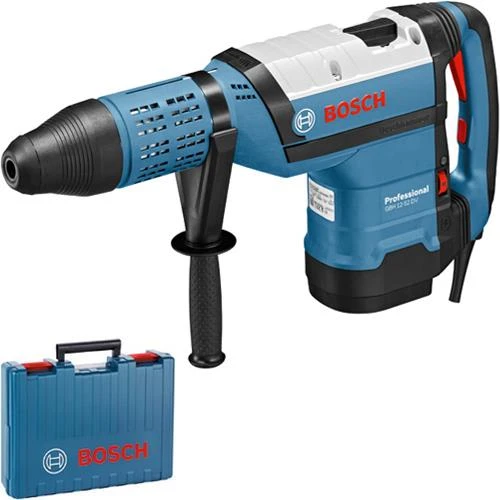

Bosch GBH 12-52 DV 1700W SDS-Max Hammer Drill With Vibration Control (110v) 0611266060

Bosch GBH12-52DV SDS-Max Hammer

The GBH 12-52 DV is Bosch’s most heavy-duty SDS-Max hammer drill! It has a powerful 1700W motor which delivers 19 J of impact energy for the toughest drilling and chiselling applications.



   Kelvin’s Advice

Please note that there are two different versions of this tool:

GBH 12-52 D – without Vibration Control.
GBH 12-52 DV – with Vibration Control.

• Carry case
• Auxiliary handle
• Grease tube
• Machine cloth

• Two modes: hammer drilling and chiselling
• Bosch’s most heavy-duty SDS-Max rotary hammer!
• Powerful 1700 watt motor delivers 19 joules of impact energy for the toughest drilling and chiselling applications
• High-end motor ensures ultimate performance in SDS-Max tasks
• SDS-Max chuck for maximum power transmission and tool-free bit changes
• Speed preselection for applications which require material-specific speed
• Receive constant speed under load thanks to electronic regulation
• Turbo Power function utilises the power used for drilling to increase the impact energy when in hammer-only mode for better chiselling performance
• Vibration Control: rubber mounting and foam padding in the handles significantly reduces vibration for increased safety and comfort
• Rotation control clutch protects both you and this Bosch SDS-Max drill in the case of overload or binding by unlatching clutch dogs and minimising torque
• Restart protection prevents autonomous restart of this Bosch SDS-Max hammer drill after an interruption to the power supply – it will only be ready to use again through conscious activation
• Extremely robust metal components ensure high durability

• Voltage: 110v
• Bit holder: SDS-Max
• Drilling diameter in concrete with hammer bits: 12-52 mm
  Optimum application range in concrete with hammer bits: 30-50 mm
  Max. drilling diameter in concrete with breakthrough bits: 80 mm
  Max. drilling diameter in concrete with core cutters: 150 mm
• Rated input power: 1700 W
• Max. impact energy: 19 J
• Rated speed: 0-220 rpm
• Impact rate at rated speed: 1750-2150 bpm
• Dimensions (L x W x H): 600 x 120 x 312 mm
• Weight: 11.9 kg
• Part number: 0611266060
