Description

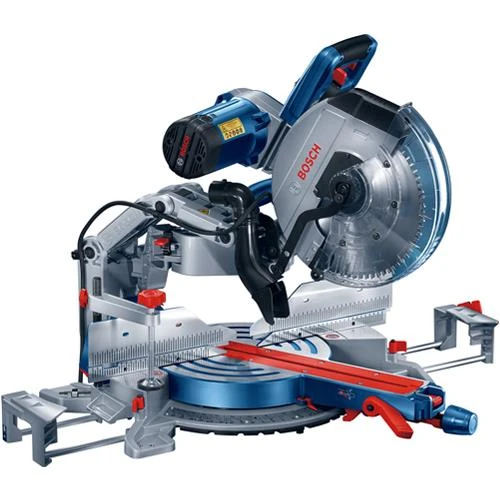

Bosch GCM 12 GDL Axle-glide Sliding Mitre Saw
The Bosch GCM 12 GDL 305mm sliding compound mitre saw (110v) has an innovative ‘Axial Glide’ guide arm for extremely smooth cutting with lasting precision.
Comes With
- 72-tooth ‘Expert for Wood’ Blade
- Collet
- Insert plate
- Internal hexagon
Best Features of the Bosch GCM 12 GDL Mitre Saw
- Sliding function for larger workpieces – the frictionless slide mechanism ensures very easy sawing without any loss of power
- Double bevel – the saw head can be inclined by 47° on both sides to make angled cuts
- ‘Axial Glide’ system: this Bosch 305mm mitre saw has an innovative guide arm (extremely robust and maintenance-free) for extremely smooth cutting with lasting precision
- Accurate, high-quality cuts thanks to the integrated double line laser and ‘Expert for Wood’ blade
- Click & Clean interface ensures immediate dust extraction for a clear view of the work surface, a longer tool and blade lifetime, and increased health protection
- Intelligent brake system for increased safety – still works if the power fails
- Soft start: the load and torque of the motor are temporarily reduced during start-up
- Quick and easy blade changes thanks to the spindle lock
Technical Spec.
- Voltage: 110v
- Blade diameter: 305 mm
Blade bore: 30 mm - Mitre setting (turntable) left/right: 52/60°
- Bevel setting (blade tilt) left/right: 47/47°
- Cutting capacity at 0°: 104 x 341 mm
Cutting capacity at 45° mitre: 104 x 240 mm
Cutting capacity at 45° bevel: 51 x 341 mm - Rated input power: 1500 W
- No load speed: 3800 rpm
- Dimensions (L x W x H): 1100 x 670 x 740 mm
- Weight: 32.1 kg
- Sound pressure: 93 dB(A)
Sound power: 106 dB(A) - Part number: 0601B23660















Reviews
There are no reviews yet.
