Description

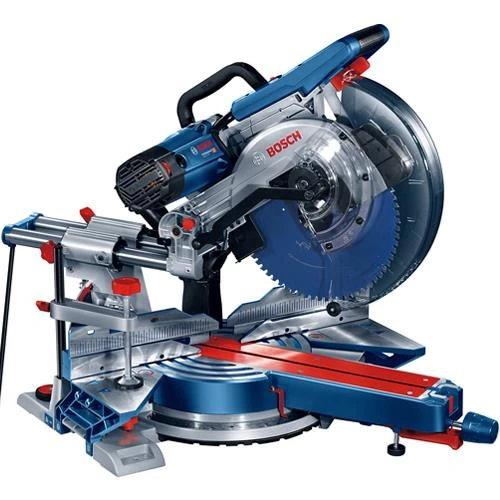

Bosch GCM 12 SDE 305mm Double Bevel Mitre Saw
The Bosch GCM 12 SDE 305mm sliding compound mitre saw (110v) has a high cutting capacity up to 120mm vertically.
Comes With
- 72-tooth ‘Expert for Wood’ blade
Best Features of the Bosch GCM 12 SDE Mitre Saw
- High cutting capacity – up to 120mm vertically
- Sliding function for larger workpieces
- Double bevel – the saw head can be inclined by 47° on both sides to make angled cuts
- Variable speed allows you to adjust the speed of this Bosch 305mm mitre saw to the application and material (240v only)
- Speed preselection for applications which require material-specific speed (240v only)
- Click & Clean interface ensures immediate dust extraction for a clear view of the work surface, a longer tool and blade lifetime, and increased health protection
- Laser projection of the cutting line for increased precision
- Intelligent brake system for increased safety – still works if the power fails
- Soft start: the load and torque of the motor are temporarily reduced during start-up
- Tool-free blade changes
Technical Spec.
- Voltage: 110v
- Blade diameter: 305 mm
Blade bore: 30 mm - Mitre setting (turntable) left/right: 52/60°
- Bevel setting (blade tilt) left/right: 47/47°
- Cutting capacity at 0°: 85 x 370 mm
Max. vertical cutting capacity at 0° with spacer: 120 x 200 mm
Max. horizontal cutting capacity at 0° with spacer: 70 x 400 mm
Cutting capacity at 45° mitre: 85 x 250 mm
Cutting capacity at 45° bevel: 60 x 360 mm - Rated input power: 1450 W
- No load speed: 3100-4000 rpm
- Dimensions (L x W x H): 600 x 860 x 530 mm
- Weight: 28.6 kg
- Sound pressure: 92 dB(A)
Sound power: 105 dB(A) - Part number: 0601B23160
