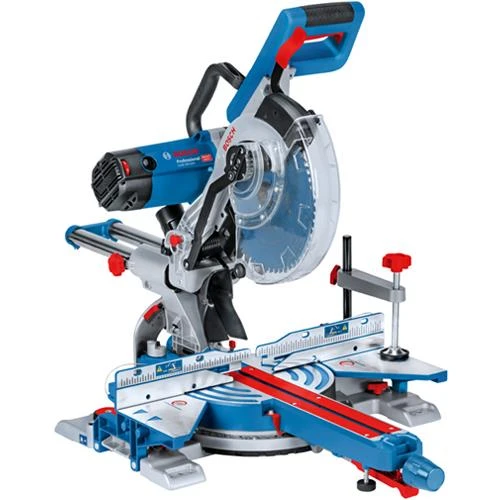

Bosch GCM 350-254 1450W 254mm/10 Inch Sliding Compound Mitre Saw With Blade (110v) 0601B22660

Bosch GCM 350-254 10″ Double Bevel Mitre Saw

The Bosch GCM 350-254 254mm/10″ sliding compound mitre saw (110v) has a high cutting capacity with a best-in-class 100mm cutting depth. It has an ‘Expert for Wood’ blade and laser projection of the cutting line for accurate, high-quality cuts.

• 60-tooth ‘Expert for Wood’ blade

• High cutting capacity – this Bosch sliding compound mitre saw has a best-in-class 100mm vertical cutting capacity
• Sliding function for larger workpieces
• Double bevel – the saw head can be inclined by 47° on both sides to make angled cuts
• Accurate, high-quality cuts thanks to the ‘Expert for Wood’ blade and laser projection of the cutting line
• Variable speed allows you to adjust the speed of this Bosch 10 inch mitre saw to the application and material
• Speed preselection for applications which require material-specific speed
• Click & Clean interface ensures immediate dust extraction for a clear view of the work surface, a longer tool and blade lifetime, and increased health protection
• Soft start: the load and torque of the motor are temporarily reduced during start-up
• Tool-free blade changes

• Voltage: 110v
• Blade diameter: 254 mm / 10 inch
  Blade bore: 30 mm
• Mitre setting (turntable) left/right: 52/60°
• Bevel setting (blade tilt) left/right: 47/47°
• Cutting capacity at 0°: 89 x 320 mm
  Max. vertical cutting capacity at 0° with spacer: 100 x 250 mm
  Max. horizontal cutting capacity at 0° with spacer: 60 x 350 mm
  Cutting capacity at 45° mitre: 89 x 226 mm
  Cutting capacity at 45° bevel: 50 x 320 mm
• Rated input power: 1450 W
• No load speed: 3700-5000 rpm
• Dimensions (L x W x H): 560 x 820 x 490 mm
• Weight: 24.2 kg
• Sound pressure: 95 dB(A)
  Sound power: 106 dB(A)
• Part number: 0601B22660
