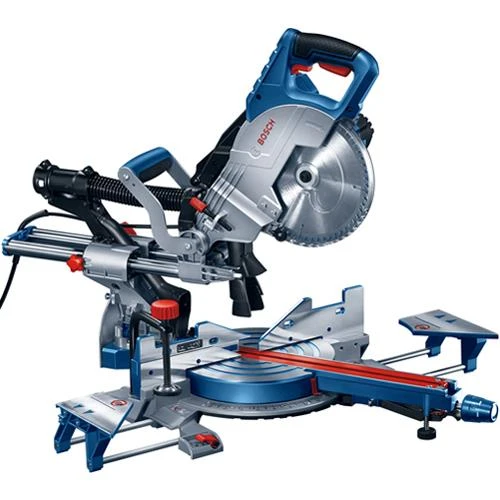

Bosch GCM 8 SJL 1400W 216mm Single Bevel Sliding Mitre Saw With Blade (110v) 0601B19160

Bosch GCM8SJL 216mm Mitre Saw

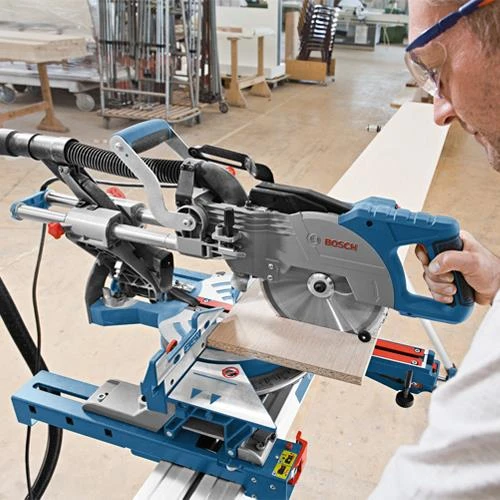

The Bosch GCM 8 SJL single bevel sliding mitre saw (110v) has a 312mm horizontal cutting capacity for a large number of applications, plus low weight for excellent mobility.

• 24-tooth ‘Optiline Wood’ blade
• Clamp

• 312mm horizontal cutting capacity for a large number of applications
• Sliding function for larger workpieces
• Single bevel – the saw head can be inclined by 47° on the left to make angled cuts, with additional angle range for undercuts
• Excellent mobility – this Bosch 216mm mitre saw has low weight of 17kg for easy transportation
• Click & Clean interface ensures immediate dust extraction for a clear view of the work surface, a longer tool and blade lifetime, and increased health protection
• Soft start: the load and torque of the motor are temporarily reduced during start-up
• Quick and easy blade changes thanks to the spindle lock

• Voltage: 110v
• Blade diameter: 216 mm
  Blade bore: 30 mm
• Mitre setting (turntable) left/right: 52/60°
• Bevel setting (blade tilt) left/right: 47/2°
• Cutting capacity at 0°: 70 x 312 mm
  Cutting capacity at 45° mitre: 70 x 214 mm
  Cutting capacity at 45° bevel: 48 x 312 mm
• Rated input power: 1400 W
• No load speed: 5500 rpm
• Dimensions (L x W x H): 460 x 910 x 410 mm
• Weight: 17.3 kg
• Sound pressure: 99 dB(A)
  Sound power: 112 dB(A)
• Part number: 0601B19160
